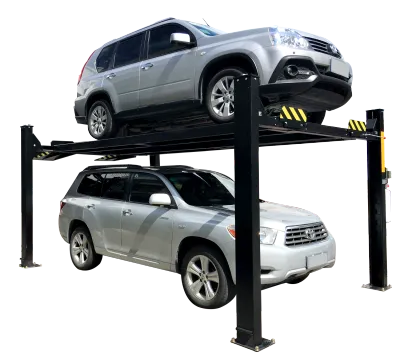

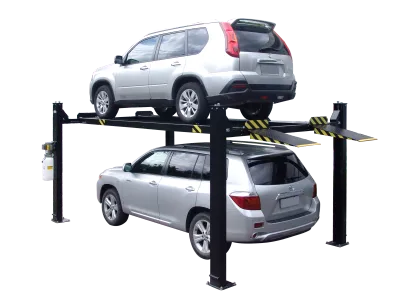

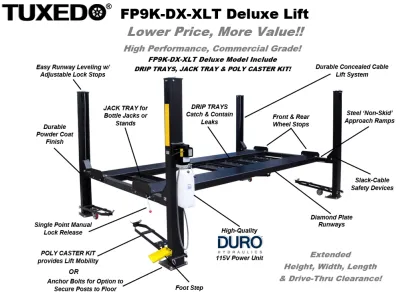

The TUXEDO FP9K-DX-XLT 9,000 lb. Deluxe Four Post Lift is a durable commercial-grade high-performance, cable pull vehicle lift, designed for storing, inspecting, and servicing most larger Cars, SUVs, Vans, and Trucks. It also offers a space-saving parking solution for most residential garages and shops. The FP9K-DX-XLT Deluxe model includes Drip Trays, Jack Tray, and Poly Caster Kit, while incorporating the latest in design and safety features with reliable hydraulic operation and a durable concealed mechanical cable lift system, complete with slack-cable safety devices and cable pulley shaft design with grease fittings to extend the lift's life.

Specifications

• Capacity: 9,000 lbs

• Overall Length with Ramp: 239″

• Overall Width (Outside Base Plates): 123″

• Overall Height: 97″

• Lifting Height: 85″

• Width Between Posts: 111-1/2″

• Length of Runways: 188-1/2″

• Width of Runways: 20″

• Lifting Speed: 100S

• Maximum Clearance under Track: 81″

• Cable Diameter: 3/8″

• Base Plate Size: 12″ x 12″

• Lock Position: 11

• Ship Weight: 2,354 lbs

• Power: 115V – 20 Amp – 1PH

The FP9K-DX-XLT Deluxe Lift provides additional lift height, width, length, capacity, and drive-thru clearance for larger vehicles. Easy lift operation is ensured with a single-point mechanical lock release and a 115V electric/hydraulic high-quality power unit. You also have the option to either anchor the posts to the floor or keep them mobile, using the Poly Caster Kit. With a durable powder coat finish, wide diamond plate runways, front and rear wheel stops, and adjustable lock stops for easy runway leveling, the FP9K-DX-XLT lift is economically priced with all the features, offering unmatched value.
